Inspecting equipments

DESCRIPTION FEATURES QUANTITY BRAND NAME
CHEMICAL  SPECTROMETER [FIXED] 26 , 25CH 2 Set ARL3460, GNR
TEST P.M.I. (PORTABLE) MA. 01730 1 Set NITON
PHYSICAL TEST UNIVERSAL TEST MACHINE 50 , 30 TONNAGE 2 Set
IMPACT TEST MACHINE CHARPY (DIY-30) 1 Set
HARDNESS TESTER BRINELL 1 Set
ROCKWELL 1 Set
EQUOTIP 1 Set
NONDESTRUCTIVE TEST M.T. MACHINE (PROD) 10,000 AMP 1 Set MAGNAFLUX
M.T. YOKE  YOKE, KA-3(4.5Kg) 2 Set HANDY MAGNA
Ultrasonic Flaw Detector  EPOCH-XT, USK-7 2 Set
MEASURING FERRITE SCOPE   1 Set FISCHER
DIPPING TYPE THERMOMETER & OPTICAL PYROMETER   4 Set

MEASURING EQUIPMENTS   LOTS OF





Manufacturing equipments

EQUIPMENTS & FACILITIES FEATURES QUANTITY REMARKS
PLANT PLANT 1  *SITE :   1,653С *BUILDING : 1,100С
PLANT 2  *SITE : 31,250С *BUILDING : 11,570С
MOULDING CO2 MOULDING LINE MIXER 6EA 2 TYPE
SHELL MOULDING M/C DUMP 600X800 2 Set
SHELL CORE BLOWING M/C 500X500, 400X400 8 Set
MELTING HIGH FREQUENCE INDUCTION FURNACE 100Kg,150Kg 1 Set 1 Source 2 Bodies
200Kg,300 Kg 1 Set 1 Source 2 Bodies
DITTO 1,000 Kg 1 Set Dual type
MIDDLE FREQUENCE INDUCTION FURNACE 3,000 Kg 1 Set 1 Source 2 Bodies
HIGH FREQUENCE INDUCTION FURNACE 5,000 Kg 1 Set Dual type
FETTLING HANGER SHOT BLAST I-RAIL LARGE, TROLLEY 3 Set
APRON SHOT BLAST Φ1000 1 Set
HEAT TREATMENT FURNACE RAIL  8,000 Kg 1 Set
OTHERS WELDING M/C, OTHER FINISHING EQUIPMENTS   LOTS OF WELDING M/C: FRONIUS

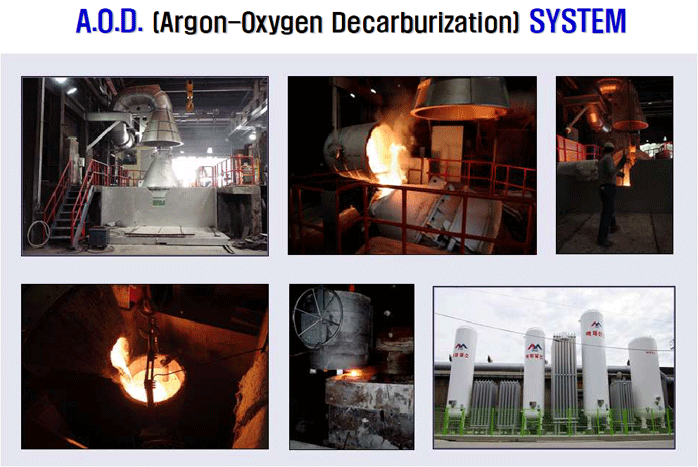

*PRODUCTION CAPACITY : 10 TONNAGE PER CHARGE
TITLE FEATURE
VESSEL  CAPACITY 10,000 Kg
TYPE, COOLING METHOD SYMMETRICAL, AIR COOLED
TOTAL HEIGHT 3,885mm
FIXED TYPE CYLINDER, T/R RING
RAMPING METHOD ELECTRO MOTOR DRIVE
ANGLE RANGE 0 ~ 180‘
DUST COLLECTOR COOLING METHOD AIR COOLED
HOOD TYPE CONE TYPE
